WINDFORCE 3XCOOLING SYSTEM The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 6 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0 With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PCI Express 4.0 x16
AMD Radeon RX 6000 Series
Radeon RX 6800 XT
4608 Stream Processors
Effective Memory Clock
DirectX 12 Ultimate
2 x HDMI 2.1
2 x DisplayPort 1.4a
7680 x 4320
System PSU Limitation: 750W
2 x 8-Pin

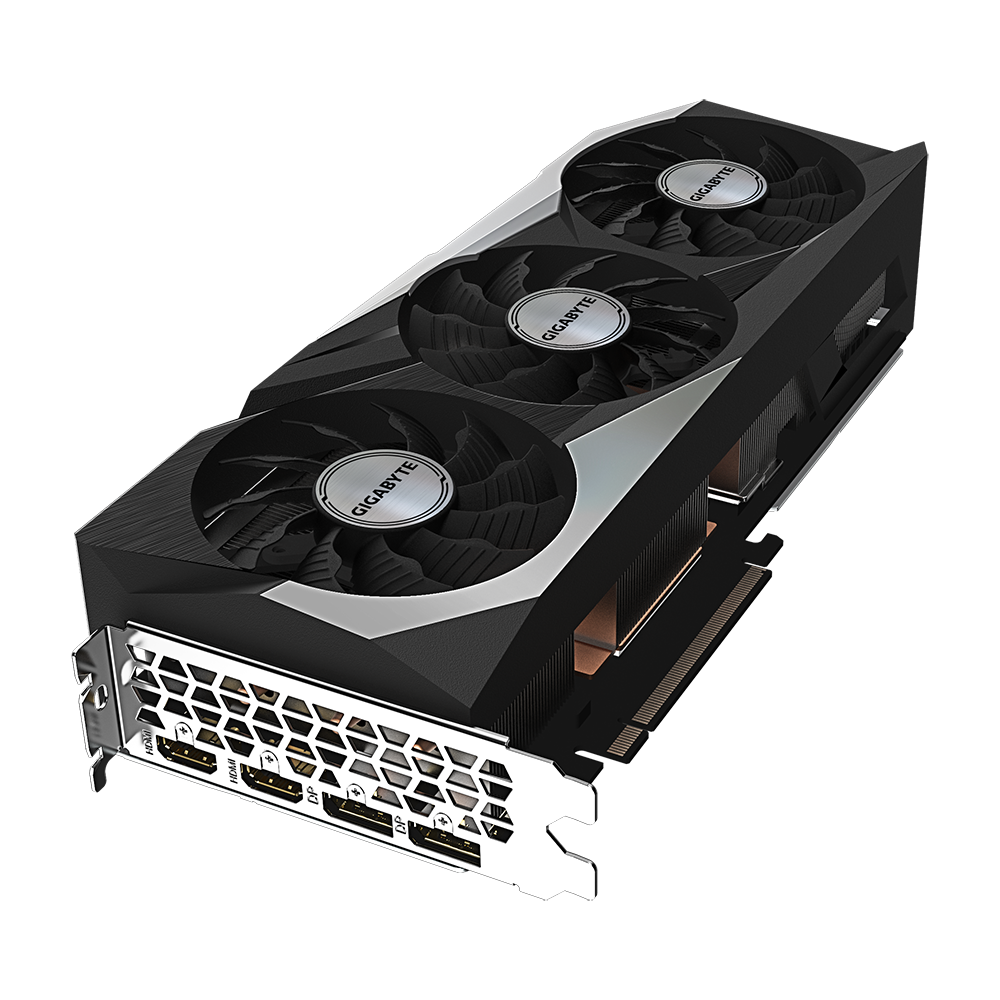

Powered by RDNA2 Radeon RX 6800 XT Integrated with 16GB GDDR6 256-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans Screen cooling Graphene nano lubricant RGB Fusion 2.0 Dual BIOS Protection metal back plate
